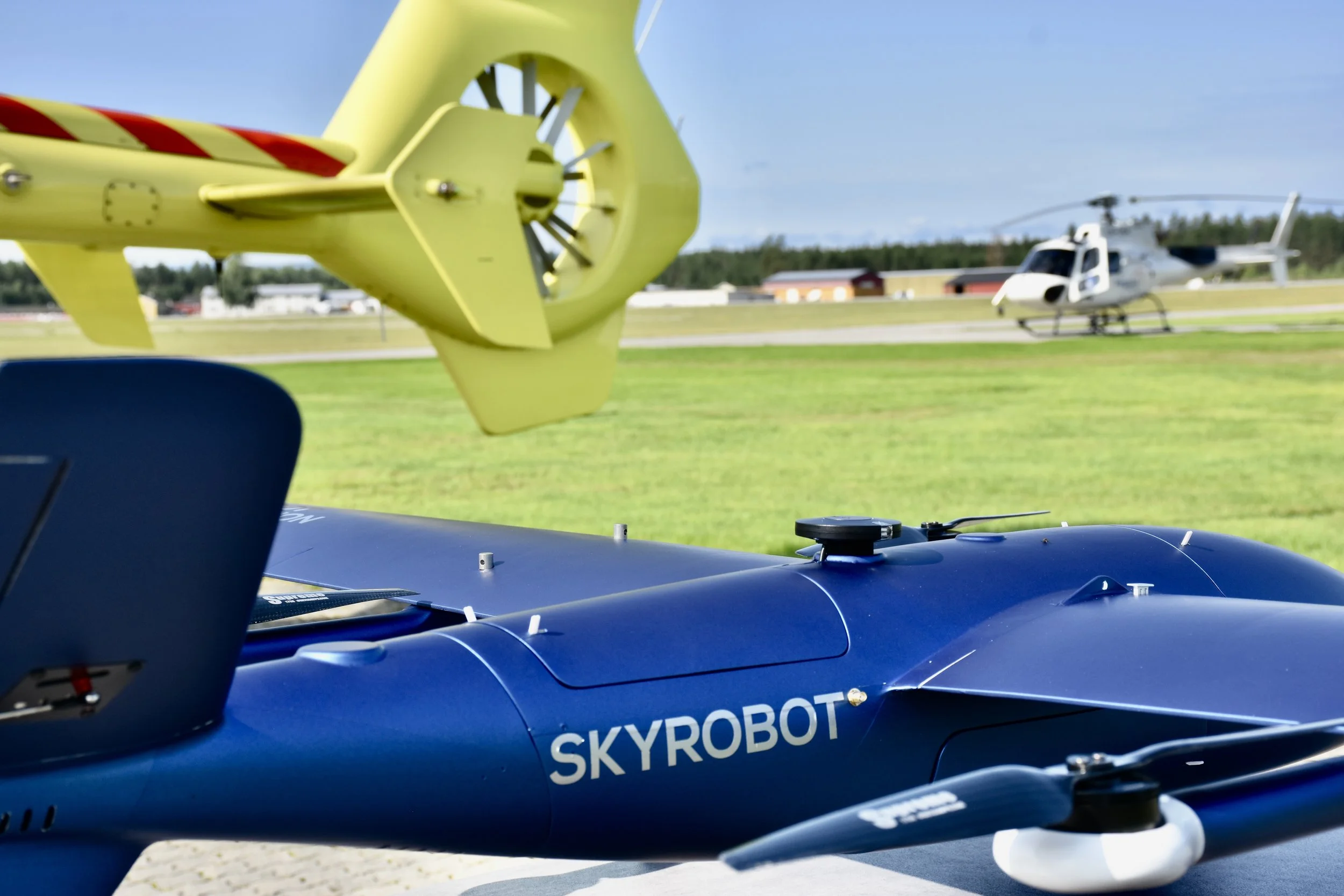

SkyRobot FX10NG, a VTOL with fixed-wing performance

About

SkyRobot10NG -Robot Aviation’s FX10NG is a highly mobile and fully autonomous Unmanned Aerial Vehicle (UAV) system developed to provide a functional balance between advanced capabilities and operation in challenging environments. The systems are based on a high-performance UAV that can be fitted with a variety of payloads tailored to meet specific user requirements. The FX10NG has low energy consumption due to its advanced electric propulsion-system, the FX10NG can fly over 2,5 hours per flight.

The UAV can be programmed to fly an automatic mission via a point-and-click graphical user interface or can be directed manually throughout the course of the operation.

The Ground Control Station (GCS) is a network enabled integral part of the solution that can seamlessly pass information by way of its STANAG 4586 compliant Ethernet protocol.

The footprint is extremely small, and 1 person can easily operate the whole SkyRobot FX10NG system.

Sensor options include stabilized EO/IR with geo-position and object detection, communications relay and CBRN detectors and more.

Use cases

  • ISR and target acquisition

  • Communications relay

  • IED/Threat detection/Change Detection

  • Pollution monitoring

Fields of application

  • Inspections and Monitoring

  • National Security

  • Emergency

  • Resource Management

Spec

Touch-based mission-execution

(AES256)

Yes

Yes

20-40-80 km options

100 km

Up to 3 hours

0-90 km/h

60 km/h

4000 m

4x2000w electric motos vertical & 1x1800w fwd-horizontal

Autopilot, IMU,GNSS, dual data-links & transponder

1.26 meters

0,30 meters

2.50 meters

13 kg

2 kg

-20°C to +55°C

Description

Autonomous ➜

Encrypted digital data link ➜

Multiple simultaneous video feeds ➜

Stabilized EO/IR gimbal ➜

Range ➜

Mission radius ➜

Endurance ➜

Speed range ➜

Cruise airspeed ➜

Service ceiling ➜

Propulsion ➜

Avionics ➜

Length ➜

Height ➜

Wingspan ➜

MTOW ➜

Payload ➜

Environment ➜

SkyRobotTM FX10NG equipped with dual EO/IR gimbal enabling – Day & Night missions

Launch & Recovery

SkyRobotTM FX10NG is a VTOL capable system launched with 4 x electric motors providing verticsal lift. Once airborne forward flight is supported by an aft mounted electric pusher motor.

Mission Flexibility

The SkyRobot TM FX20 is equipped with a stabilized EO/IR gimbal that allows both – day and night missions. Validated vehicle detection is 6km and human detection is 3km. In addition we offer communication-relay solutions & CBRN sensors.

Modularity & Mobility

SkyRobotTM FX10NG modular structure allows fast assembly and provides easy transportation in ruggedized transportation cases.

Energy Efficiency

SkyRobotTM FX10NG has a low energy consumption thanks to its advanced aerodynamics. As a result, the all-electric system can fly up to three hours per flight, depending upon its specific mission and payload.

Data-Link

SkyRobotTM FX10NG system is equipped with dual redundant datalink for both C2 and payload data. In case primary data-link is lost, mission can be continued with secondary data- link. SkyRobotTM FX10NG system uses a phased array antenna system that can read the direction and location of the aircraft in GPS-denied environments. Systems data-link supports point- to-multipoint communication technology and allows control of multiple aerial vehicles from the same GCS.

Training & Support

SkyRobotTM FX10NG training program covers all aspects of operation, maintenance, pre-flight and post-fight procedures. SkyRobotTM FX10NG customers are supplied with comprehensive user manuals and on demand customer support.

Payload

  • 40x zoom (20x optical, 2x digital)

    Resolution: 1280x720 pixels, 720P HD

  • Resolution: 640 x 480 pixels, 480P SD

    Spectral band: 8 – 12 μm (LWIR)

    Frame Rate: 30 Hz (NTSC) or 25 Hz (PAL)

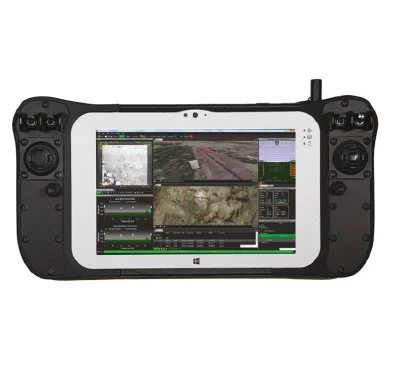

Ground Control Station

  • Mini rugged GCS allows user to plan missions, direct the flight of the aircraft, control the gimbal, and land the UAV in fully autonomous, semi-autonomous and manual modes. This GCS features 10,1” multi touch screen, 4 hours battery life, 128GB SSD internal storage, HID joysticks for manual control, IP65 environmental protection, WiFi, LTE, Bluetooth and weighs only 1,2kg.

Get in contact with us to know more about the SkyRobotTM FX10NG
