Skyrobot FX-Y fully autonomous six-rotor VTOL-UAS

About

The FX-Y is the result of our aspiration to provide Armed Forces with a VTOL UAS capable of performing aerial surveillance of surface activities during both, daylight and darkness, in a typical worldwide military field operating conditions, providing NATO compliant interoperability

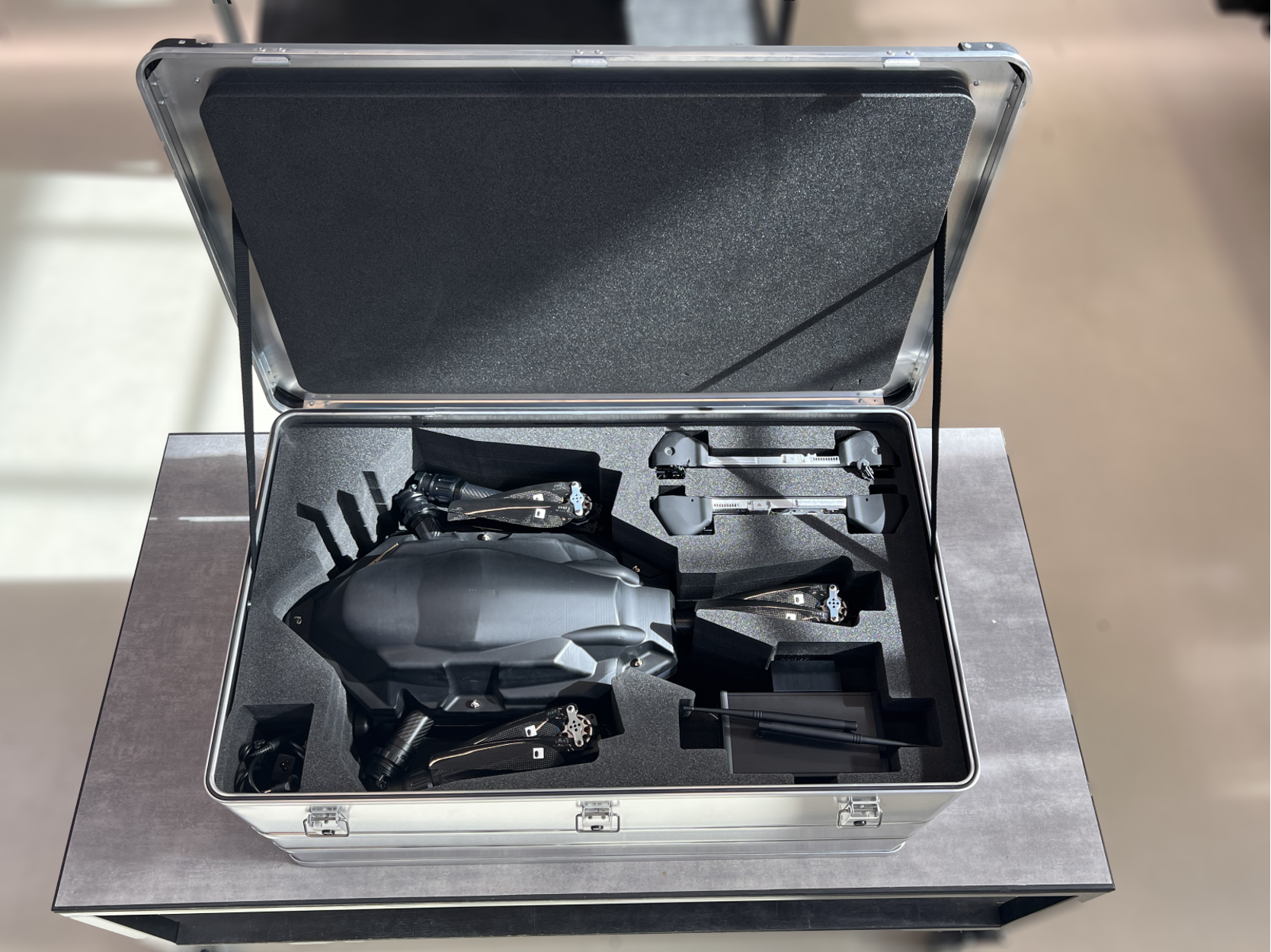

It is a complete system, based on a ruggedized six-rotor VTOL air-vehicle.  Integrated with various payloads and a secure ground control station, it is a complete solution in a very easy managed and operated system. It is topped off with a state of the art encrypted communications link which includes soldier-comms relay functionality.

It is supported by the integrated logistics support required to operate and maintain the system throughout its lifetime. Robot Aviation team has worked hard to create a system that is safe to use, same time providing the highest level of mobility at a competitive cost.

FX-Y is built on extensive field experience and our NATO STANAG expertise on command and control of multiple sensors in controlled environment. The system provides stabilized live video and metadata with geo-reference and auto-tracking.

Use cases:

  • ISR and target acquisition

  • Communications relay

  • UAS capability for armored vehicles and boat

Description

Height ➜

Payload ➜

Lenght ➜

MTOW ➜

Mission Radius ➜

Endurance ➜

Cruise Speed➜

Max Speed ➜

Wind Resistance ➜

Propulsion ➜

Avionics ➜

GCS Weight ➜

Environment ➜

Human Detection ➜

Vehicle Detection ➜

VTOL

One man

Nato Stanag 4586

IRS & Target Acquisition

Coms Relay

Spec

0,3 m

3 kg

0,90 m

12 kg

20 km

45 min

45 km/h

90 km/h

15 m/s

6 x electric motors with conventional 2-bladed rotors

Autopilot, IMU, GPS based navigation & transponder

1,5 kg

-20°C to +55°C

3 km

6 km

SkyRobotTM FX-Y, the perfect companion for any mission

SkyRobotTM FX-Y is fully autonomous UAS based on a ruggedized six-rotor VTOL air- vehicle designed for professional surveillance, military ISR and target acquisition missions. This system is integrated with EO/IR gimbal, secure ground control station and state-of-the-art encrypted communications link that includes soldier-comms relay functionality while providing human detection range of 3km and vehicle detection range of 6km.

Integration

SkyRobotTM FX-Y can be supplied as integration module to provide unmanned aerial vehicle capability and support for armored vehicles and boats.

Autonomy

SkyRobotTM FX-Y is pre-programmed to fly an missions automatically via a point-and-click graphical user interface and can also be flown manually by hand controller as needed

Training and support

SkyRobotTM FX-Y training program covers all aspects of operation, maintenance, pre-flight and post-fight procedures. SkyRobotTM FX-Y customers are supplied with comprehensive user manuals and on demand custom support

Payload

  • 40x zoom (20x optical, 2x digital)

    Resolution: 1280x720 pixels, 720P HD

  • Resolution: 640 x 480 pixels, 480P SD

    Spectral band: 8 – 12 μm (LWIR)

    Frame Rate: 30 Hz (NTSC) or 25 Hz (PAL)

Ground Control Station

  • Mini rugged GCS allows user to plan missions, direct the flight of the aircraft, control the gimbal, and land the UAV in fully autonomous, semi-autonomous and manual modes. This GCS features 10,1” multi touch screen, 4 hours battery life, 128GB SSD internal storage, HID joysticks for manual control, IP65 environmental protection, WiFi, LTE, Bluetooth and weighs only 1,2kg.

Get in contact with us to know more about the SkyRobotTM FX-Y
